Umidometru de gaze si aer comprimat

ro Umidometre » Aparat masurarea continutului de umiditate al gazelor industriale si aer comprimat

uk Moisture Meters » Gas portable hygrometers and dewpoint analysers for dry industrial process gases and dry compressed air.



Higrometru pentru masurarea punctul de roua si umiditatii gazelor

Model Alpha Moisture sADP

*produsul poate fi achizitionat si prin SEAP

Solicit oferta personalizata »



Umidometru portabil pentru gaze industriale si aer comprimat

Caracteristici generale

Determinarea umiditatii relative a aerului depinde de senzorul conectat la aparat, iar rezolutia este 0.1% rh;
• Instrument portabil digital ce ofera masurari precise si rapide pentru umiditatea din gaze industriale si aer comprimat (chiar si la la nivel de urme)
• Acest instrument elimina problemele legate de dimensiuni si greutate excesiva, afisaj analogic, probleme experimentate de catre utilizatorii higrometrelor de tip vechi
• Sistem de protectie interna pentru operare in zone periculoase
• Carcasa robusta, usoara, cu un design ergonomic protejeaza sensorul de umiditate, circuitele de prelucrare a semnalelor, ansamblul de componente ce asigura functionarea sistemului de operare,
• Afisaj cu display grafic 128x64 pixeli, tastatura cu 5 taste acoperite cu membrana, baterie reincarcabila Li-ion
• Unitatile de masurare pot fi selectate de catre utilizator: 0C, 0F, ppm (vol.), ppb (vol.), ppm (masa), g/m3, lbs/MMSCF
• Este prevazut cu un sistem deshidratant pentru realizarea de masurari rapide (sensorul este inconjurat de un strat desicant care mentine sensorul in stare uscata, in perioada dintre teste, sau atunci cand nu este folosit)
• Permite inregistrarea grafica in timp real a masurarilor, cu ajutorul unui PC (optional)
• Datele pot fi stocate in memoria instrumentului sau descarcate intr-un PC (optional)
• Instrumentul dispune de un port serial de comunicare RS485 (optional)
• Iesire analogica: 4-20 mA (optional)
• Baterie reincarcabila; o incarcare completa asigura peste 250 de ore de functionare continua
• Calibrarea este electronica si automata
• Aparatul evalueaza automat corectia de presiune
• Domeniul de masura al punctului de roua este intre -80°C si +20°C
• Prevazut cu sisteme de securitate pentru a impiedica utilizarea de catre personalul neautorizat
• Greutatea este de doar 1.2 kg
• Unitatea este livrata impreuna cu tub de prelevare PTFE (2 m), incarcator pentru baterie si manual de instructiuni si certificat de calibrare NPL/NIST.

Conformitate & Certificate

Certificat de conformitate
Certificat de calibrare
Certificat de garantie si post garantie
:: Service autorizat pentru Romania » MultiLab

Domenii de aplicatie

• producerea de energie
• exploatarea gazelor naturale
• instalatiile de tratare a aerului
• instalatiile de gaze si fluide medicale
• industriei gazeifere si petroliere
• rafinarii de petrol
• procesarea produselor chimice si farmaceutice
• industria electrica si cea electronica
• productia de plastic si metale
• in cercetare si analize

Date tehnice

Elemente senzoriale: Oxid de aluminiu de ultra capacitante inalta
Domeniu punctul de roua:
- Punctul de roua SR: -110°C ... -20°C (-166°F la -4°F )
- Punctul de roua PL: -100°C ... 0°C (-148°F la +32°F )
- Punctul de roua RD: -80°C ... -20°C (-112°F la -4°F)
- Punctul de roua GY: -80°C ... 0°C (-112°F la +32°F )
- Punctul de roua BL: -80°C ... +20°C (-112°F la +68°F )
Unitati afisate:
- Punctul de roua / inghet °C - Grade centigrade
- Punctul de rouă / îngheţ ° F - Grade Fahrenheit
- Volum ppm(v) - părţi per milion
- Volum ppb(v) - părţi per bilion
- Greutate ppm(w) - părţi per milion
- Greutate g/m3 - gram pe metru cub
- Greutate lbs/MMSCF - Pound per milion / standard cubic feet
Afisaj / Display: LCD albastru pe fond verde, 128 x 64 pixel, Grafic cu LED luminos
Acuratete senzorul de calibrare: ± 2°C punct roua. insotit cu certificat de calibrare conform standarde internationale.
Calibrare automata: cu microchip electronic "Span Check" cu protectie parola.
Repetabilitate: mai buna de ±0.2°C punct roua
Alimentare: baterie reincarcabila Li-Ion.

Brosura tehnica »


Solicit oferta de pret »

Precise handheld Gas Moisture Meter

Main features

The Model SADPmini Hand Held Dewpoint Meter has Automatic Calibration as standard and has also on-board logging for the capture and display of up to 16000 data points, with 20 user-definable TAG references.
The Model SADPmini dew-point meter combines the proven reliability and excellence of ultra-high capacitance aluminium oxide dew point sensor technology with state of the art electronics in an ultra portable, compact and lightweight instrument that sets the industry standard in Portable Hand-Held Dew Point Measurements for dry gases.

Key Features

Ranges available between -110ºC to +20ºC (-166ºF to +68ºF) dewpoint
Electronic Auto Calibration
Calculates and adjusts for pressure
Built in security features to prevent tampering

Technical Features

RS485 Serial Connection
4-20mA Analogue output
Data Logging & PC download via USB or serial connection
Weighs less than 1.2kgs
Quick and accurate measurement - using our proven "Desiccant Head" technology
High Performance rechargeable battery - Over 270 hours of continuous operation
Robust and ergonomic design
Password protection is provided for maximum security of all data.
This rugged, ergonomically designed housing of the SADPmini dewpoint analyzer incorporates the moisture sensor, signal conditioning circuitry, memory management, 128x64 dot graphics display, 5 key membrane keyboard plus on-board rechargeable lithium-ion battery. This self contained digital unit is user friendly and eliminates the problems experienced by operators and technicians with the bulky size, weight and even analogue readouts associated with the previous generation of traditional dew point meters.
The Model SADPmini dew point meter achieves very rapid, reliable and accurate readings every time and the connectivity of this hand held dew point meter provides a versatile solution. Linear 4-20mA analogue output, Serial RS485 communications and direct USB connection to PC are all available.
The compact and portable dew point meter SADPmini is supplied ready to use and comes with a Certificate of Calibration traceable to National and International Humidity Standards, two metres of PTFE sampling hose, universal battery charger and full easy to follow instruction manual

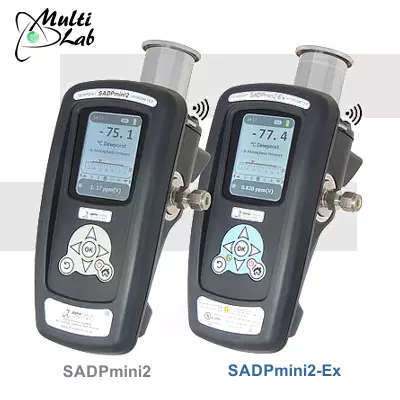

Available as:
SADPmini2 Standard (No logging. No Bluetooth)
SADPmini2 Logger (With logging. With Bluetooth)
Also Available for Hazardous areas:

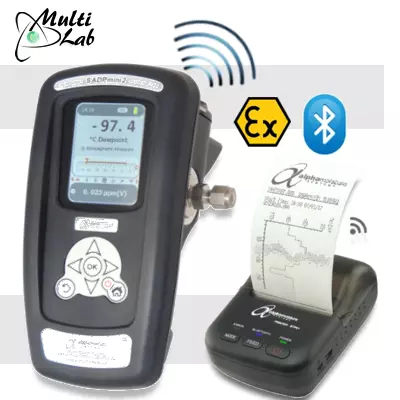

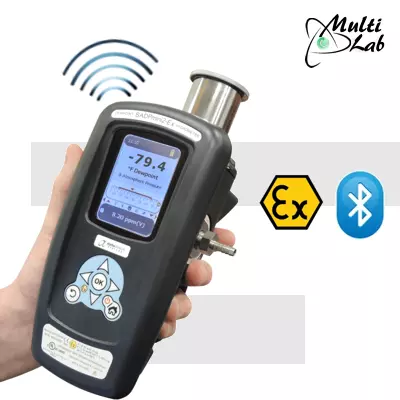

Model SADPmini2-Ex (ATEX, cULus listed and IECEx Certified) for hazardous area applications
Accessories available:
BTP01 Bluetooth Printer

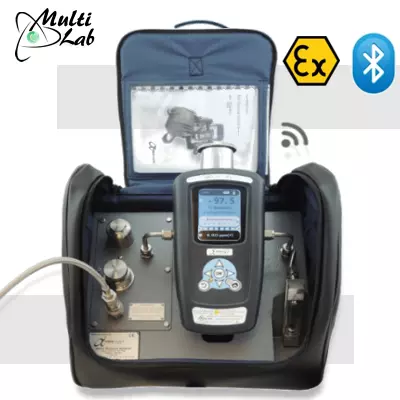

PSS - Portable Sample System

Technical data sheet »


Quotation Request »



Vaiante de model

Alpha Moisture Systems range of portable hygrometers and dewpoint analysers

Model Desicant / deshidratare Siguranta intrinseca Caracteristici Display Unitati afisate
SADPminiEx siguranta intrinseca aparat portabil, PC intefata digital grafic ºC, ºF, ppb(v), ppm(v), ppm(w), g/m³, lb/MMSCF
SADPmini X aparat portabil, PC intefata digital grafic ºC, ºF, ppb(v), ppm(v), ppm(w), g/m³, lb/MMSCF
DSP-Ex siguranta intrinseca digital ºC, ºF, ppb(v), ppm(v), ppm(w), g/m³, lb/MMSCF
DSP-Fci X controller de debit integrat digital ºC, ºF, ppb(v), ppm(v), ppm(w), g/m³, lb/MMSCF
DSP-Rm X baterie reincarcabila / retea elec. digital ºC, ºF, ppb(v), ppm(v), ppm(w), g/m³, lb/MMSCF
P35 SF6 punct de rouar X baterie / retea elec. digital ºC, ºF
SADPµ baterie analogic ºC, ºF, ppm(v)
SADPµ-D baterie digital ºC, ºF
