Statie de analiza si monitorizare H2S hidrogenul sulfurat

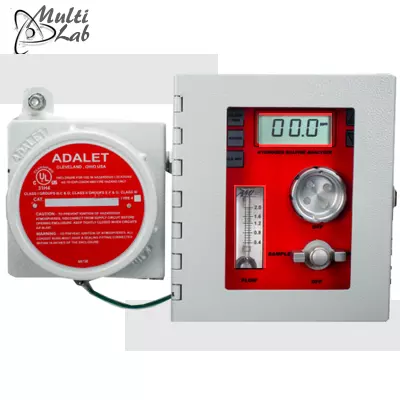

Statie de analiza detectie si monitorizare H2S hidrogen sulfurat cu sistem de incalzire integrat

Analizor stationar de mare performanta pentru analiza continutului H2S in fluxul de gaze naturale cu sistem de incalzire optional, poate fi montat in interior sau in exterior in orice conditii meteorologice (-20° pana la 115°), dotat cu 4 domenii standard pentru iesire analogica 4-20mA, 2 contacte de alarma, functie datalogger, debitmetru si valva de gaz cu 3 cai, si senzor de H2S cu acuratetea de masura automat selectabil: 0-10ppm, 0-50ppm sau 0- 100ppm si optional: 0-500ppm, 0-1000ppm, 0-2000ppm; masuratori ce poate transmise prin data-logger integrat sau descarcate prin interfete RS-232, USB si iesire analogica 4-20mA.
Versiunea analizorul cu incalzire este conform Clasa 1, Div. 1 sau Div. 2, Grupe B,C,D pentru flux de gaze inflamabile.
Optional poate fi dotat cu separator de condens si sonda de prelevare cu evacuare condens, cu regulator de presiune (reduce presiunea din conducta la nivelul presiunii de lucru a aparatului)

Caracteristici tehnice

• Domeniu de masurare: 3 domenii de iesire selectabile
• Display: LCD afisaj High resolution 3½ digit
• 2 alarme pentru concentratie de H2S configurabile adjustabile cu contacte si relee cu timpi de intarziere programabili, bypass de alarma
• Protectie RFI
• Semnale de iesire: izolate 1-5VDC si 4-20mA.
• Inregistre de date: Data logger integrat cu interfata RS-232 bi-directional pentru comunicari avansate.
• Iesire analogica pentru calibrari avansate
• Alimentare: 10-28VDC sau 115VAC
• Detectie: valori limitele inferioare
• Repetabilitate excelenta
• Temperatura de operare extinsa
• Blocul de celula este integrat cu dispozitivele de compresie, cu supapele si cu debitmetru ce inseamna mai putine legaturi, furtuni si alte legaturi.
• Zone Clasificate: conform UL-913 si UL-1203; Clasa 1, Div. 1, Grupe B,C,D pentru flux de gaze inflamabile.
• Montare: pe perete sau cuplat la conducta cu racord de 2.0"
• Viata senzor: aprox. 3 ani.

• Domeni de masura selectabile: 3 domenii standard 0-10ppm, 0-50ppm, 0-100ppm
• Domeni de masura optionale: 0-500ppm, 0-1000ppm si 2000ppm
• Display: LCD digital High resolution 3 ½ digit afiseaza scara intraga de la 0.00ppm la 100ppm independent de domeniu selectat.
• 2 alarme pentru concentratie de H2S configurabile adjustabile cu contacte si relee cu timpi de intarziere programabili, bypass de alarma cu contacte uscate tip 5A. la 24VDC/115VAC
• Timp de intarziere alarma: programabila intre 0-300 minute
• Retinere programata de alarma: programabila intre 0-120 minutes
• Semnale de iesiri: izolate1-5VDC sau 4-20mA prezinta domenii selectate: 0-10ppm, 0-50ppm, 0-100ppm
• Inregistrator de date: tip Data logger cu inregistrare in timp real pana la 15 zile la interval de 1minut sat 30 de zile la interval de 2 minute, etc.. prezinta domeniul selectat: 0-10ppm, 0-50ppm, 0-100ppm.
• Alimentare:
- Varianta far incalzire: 10-28VDC/ 115VAC <70mA. la 12VDC
- Varianta cu incalzire: <24W la 12VDC
• Detectie minima: 50ppb / H2S
• Repetabilitate: +/- 1% din domeniu sau +/- 0.2ppm / H2S, oricare mai mare
• Temperatura de operare:
- 4°C pana la 46°C fara incalzire
- 29°C to 46°C cu incalzire
• Temperatura Diurnei: < ±2 % din scala asupra domeniu de temperatura
• Timp de raspuns: 90% pentru domenii de masura:
0-100ppm <120 secunde la 1.5SCFH
0-2000ppm < 120 secunde la 1.5SCFH
• Raspuns la metilcaptan: 40% din concentratie actuala
• Raspuns la dioxidul de sulf: 18% din concentratie actuala
• Zone Clasificate: conform UL-913 si UL-1203 Clasa 1, Div. 1, Groupe B,C,D pentru flux de gaze inflamabile.
• Presiune de intrare: 0.5 la 150psig
• Racorduri de gaz: ¼" 316 S.S. fitinguri de compresie
• Parti udate: fitinguri 316 S.S. , racorduri, bloc de celula cu punctele placari electrolitice placate cu nichel si aur, debitmetru acrilic si inel O-rings din Viton.
• Debitul recomandat: de la 1.0 la1.5 SCFH
• Montare: pe perete sau cuplat la conducta cu racord de 2.0"
• Dimensiune: 33W x 24H x 13D cm
• Greutate: aprox 7 Kg.

Accesorii optionale

Jeanta de transport si protectie cu accesori si furtuni de prelevare
Tuburi flexibile microbore pentru prelevare
Adaptor alimentare tip bricheta de masina
Cablu USB cu software de interfata pentru comunicare cu PC sau imprimanta

Trace Hydrogen Sulfide H2S analyzer

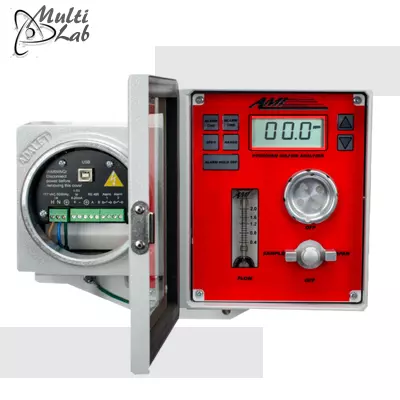

The AMI Model 3010BR Trace Hydrogen Sulfide (H2S) analyzer provides H2S monitoring in an unprecedented low cost, compact size, virtually maintenance-free package. Using AMI’s patented cell block technology, it allows a specially modified electrochemical sensor to operate on oxygen-free sample gas, eliminating the need for hazardous-waste generating lead acetate tape.
The Model 3010BR provides a complete, industry proven electronics package and integrated sample system.
AMI’s patented cell block allows the analyzer to be built with almost no possibility of internal leaking, with minimal volume and with front-panel sensor access. All sample handling components – the flow meter, needle valve and a four-way sample/span/off selection valve – are integrated into a solid metal block. Connections between them are drilled passages in place of long lengths of tubing. The result is a highly reliable sample system with all necessary components provided, and a fast response time – hydrogen sulfide is a “sticky” gas so minimizing the sample path is vital to get the least possible wetted surface area.
The expected sensor life is from one to two years depending on environment. The sensor is immediately accessible on the front panel of the analyzer, and can be replaced in seconds. For low temperature operation an integral (approved) explosion-proof heater can be supplied. This unit directly heats the cell block and thus is extremely efficient, allowing operation off a solar panel/battery system down to -20°F. The heater option does not require additional enclosures or wiring, or change the footprint in any way. For extreme environments down to -40°F, an outer insulated enclosure can be supplied, but no additional power is required.
The analyzer is approved by CSA for operation in a Class 1 Division 1 Group BCD hazardous area with a flammable gas as the sample. No additional safety barriers are needed. The analyzer can be calibrated and sensor replaced without declassifying the area because the analytical electronics are intrinsically safe, protected by internal safety barriers.
The electronic and software package is exceptionally complete, and all features are provided as standard with no additional cost (except for the heater). It is capable of operating off a battery and solar panel, and it logs power brown outs and failures should they occur. It also logs the ambient and the sensor temperatures and so can be used to alarm on the failure of a catalytic heater if one is used in a meter building. It tracks the life of the sensor and indicates the remaining life. It logs the calibration history. It logs the hydrogen sulfide readings over its operational (output) range, and also tracks excursions of up to ten times that range.
The analyzer can be wall-mounted with 4 externally accessible screws, or bolted to a 2” pipe using standard U bolts.

Main features

4 user selectable output ranges to choose from
High resolution 3½ digit LCD
2 fully adjustable Hydrogen Sulfide (H2S) Concentration alarms
Alarm delays
Alarm hold off/Bypass
RFI protected
1-5VDC and 4-20mA. isolated analog output signals
USB virtual comport and Modbus Bidirectional RS485 communication for advanced features
Datalog – 15 days hydrogen sulfide reading recording at 1 minute per sample
Calibration history – stores the last five calibrations with time, date, span factor and calibration gas
Brown-out history – stores the last five brown-outs and recoveries
Power up history – stores the last ten times the unit was powered up
Advanced analog output calibration
Power requirements: Choice of 10-28VDC or 115VAC power
Low minimum detection limit
Excellent repeatability
Extended operating temperature range Patented Cellblock Technology: Allows for all components such as flow control valve, flowmeter, and 4-way selector valve to be an integral part of the cellblock. This eliminates long lengths of tubing and fittings
Benefits of this design include compact size, faster response times and front panel sensor access without the need for tools
Area Classification: CSA approved to UL-913 and UL-1203 Class 1, Div. 1, Groups B,C,D with a flammable gas sample
Wall mount or 2.0" pipe
Compact size
2 year warranty for analyzer, parts and labor
1 year sensor warranty, life expectancy 1-3 years
Requires optional AMI User Interface software

Technical specifications

4 standard user selectable output ranges to choose from: 0-10ppm, 0-50ppm, 0-100ppm, 0–200ppm
Optional output ranges available: 0-500ppm, 0-1000ppm and 2000ppm
The selection of an output range simultaneously controls the two alarms, the analog output and the data logger so that all 4 functions operate on the same range
Digital display: High resolution 3 ½ digit LCD. Reads full scale from 0.00ppm to 200ppm independently of output range selection and 0.00ppm to 2000ppm when using high range sensor
Alarms: 2 fully adjustable Hydrogen Sulfide (H2S) concentration alarms Dry contacts 5A. @24VDC/115VAC
Alarm delays: Programmable from 0-300 minutes
Alarm hold off: Programmable from 0-120 minutes
Isolated analog output signal: 1-5VDC or 4-20mA Represents the output range selected: 0-10ppm, 0-50ppm, 0-100ppm, 0-200ppm
Data logger: Logs data for 15 days @ 1 minute intervals, 30 days @ 2 minute intervals, etc. Represents the output range selected:
0-10ppm, 0-50ppm,0-100ppm,0-200ppm
Power requirements: 10-28VDC / 115VAC < 70mA. @ 12VDC non heated < 24W @12VDC with heated option
Minimum detection: 50ppb of Hydrogen Sulfide (H2S)
Repeatability: ± 1% of range or +/- 0.2ppm of H2S,whichever is greater
Operating temperature range: 25 to 115°F non-heated; -20 to 115°F heated option
Diurnal temperature specification:< +/- 2 % of scale over temperature range
90% full scale response times for specified range: 0-100ppm < 120 seconds @ 1.5SCFH; 0-2000ppm < 120 seconds @ 1.5SCFH
Response to Methyl Mercaptan: 40% of actual concentration
Response to Sulfur Dioxide: 18% of actual concentration
Area Classification: CSA approved to UL-913 and UL-1203 Class 1, Div. 1, Groups B,C,D with a flammable gas sample Inlet gas pressure: 0.5 to 150psig
Gas connections: ¼" 316 S.S. compression fittings
Wetted parts: 316 S.S. fittings, electroless nickel plated cellblock, gold plated contacts, acrylic flow meter and Viton O-rings
Recommended flow rate: from 1.0 to 1.5 SCFH
Mounting: Wall mount or 2.0" pipe
Dimensions: 13.0"W x 9.5"H x 5.0"D
Weight: 16 lbs.
