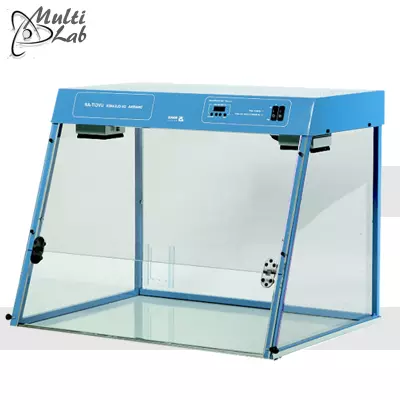

Hota PCR / Stație de lucru PCR cu recirculatie aer și raze UV-C

Hota PCR Sterila

Caracteristici generale

Camera de decontaminare PCR, fiind special conceputa pentru operatii cu mostre de ADN si alte metode de lucru si care ofera o protectie eficienta impotriva contaminarii
Echipata cu o lampa UV instalata in partea superioara a incintei, care dezinfecteaza zona interioara si suprafata de lucru in aprox. 15 - 30 minute de expunere
Structura si suprafata de lucru din otel inoxidabil; peretii sunt realizati din sticla transparenta plexiglass
Prevazuta cu funtie de oprire automata a lampii UV in momentul deschiderii panoului frontal de protectie
Sistem de recirculare radiatii UV asigura conditii aseptice permanente de functionare in interiorul camerei
Prevazuta cu temporizator / Timer digital pentru controlul duratei iradierii UV directe
Pereti rezistenti la socuri mecanice, generator elctric cu zgomot redus si consum foarte scazut de energie
Lampa UV are o durata de viata medie de aproximativ 9000 ore

Date Tehnice

• Tip: Hote de protectie deecontaminare si sterilizare cu UV-C
• Lampa UV: 1 x 25 W, bactericida, incorporata, TUV25WG13 UV-C
• Nivel radiatie: UV 15 mW/cm2/sec
• Tip radiatie: UV (λ = 253.7 nm), fara Ozon
• Temporizator/ Timer: 1 min - 24 ore/non-stop (setare / increment 1 min)
• Flux de recirculare radiatii UV: 1 x 25 W (eficienta > 99% pe ora)
• Material perete spate: otel inox
• Material perete lateral si frontal: plexiglass (euroglass)
• Material suprafata de lucru: otel inoxidabil
• Grosime panouri laterale: 4 mm
• Grosime panou frontal superior: 8 mm
• Grosime panou frontal de protectie: 4 mm
• Transmisie optica: 95%
• Protectie UV > 96%
• Dimensiuni suprafata de lucru: 650 x 475 mm
• Dimensiuni exterioare (Lxlxh): 690 x 535 x 555 mm
• Greutate: 40 kg
• Alimentare: 100 - 240 V, 50 Hz
• Putere: 67 W

Cod produs: BOE 8040000

Domenii de Utilizare

- Preparare si Teste PCR
- Manipluarea probe biologice, ADN, genetice unde se cere un mediu steril (aseptic).
- Decontaminare dispoziteve si instrumente medicale
- Sterilizare instrumente si inactivarea contaminantilor
- Dezinfectie obiecte metalice, textile, plastice, documente, bancnote, etc.

Conformitate - Certificate - Standarde

• Certificat de conformitate: European Directive 2004/108/CE (EMC Electro-magnetic compatibility), in conformity with the European Directive 2006/95/CE (BT low tension), and the normative CEI EN 61010-1:2011.
• Certificat de conformitate
• Certificat de garantie 3 ani (pentru hota) si 9000 ore de functionare pentru lampi UV

Accesorii standard: priza incorporata (maxim 1000 W/600 W)
Accesorii optionale:
- Masa de sustinere cu sau fara roti
- Ochelari protectie UV

UV-C PCR Workstation with UV air recirculator

For the preparation of PCR reactions and many other methods in molecular biology, a contamination-free working environment is required. The UVC/T-AR PCR Workstation is designed for DNA/RNA decontamination in the Laboratory working place.
The UVC/T-AR is a Bench top model, constructed from metallic skeleton and Plexiglas and has a painted metal working place and a digital timer control of UV exposure. One open 15 W UV-lamps substantially decreases contamination level during UV-exposure (15-20 min).

Main Features

White 15 W lamp provides local illumination of the working place and ensures good conditions for visual control of operation.
The Model UVC/T-AR includes not only traditional UV source for direct lighting the surface of the inner working place of the PCR-box, but also additional UV air flow cleaner (UV - recirculator) for biosafety DNA decontamination to protect the user from direct UV-light during operation.
UV-recirculator consists of a UV lamp, fan and dust filters organized in special box for maximum increasing (1000 x fold) density of UV-light leading sufficiently to effectivity of DNA inactivation.
UV-recirculator generates 100 volumes of the PCR per 1 hour air flow exchange giving maximum aseptic conditions inside the box.
No HEPA filters-Ozone free high density UV decontamination
Long Living UV Lamps (8000 hrs)-No Noise, low energy consumption-Compact bench top for Personal labs
The PCR workstation UVC/T-AR is recommended for labs working in the fields of DNA analysis, genetic engineering, molecular biology.

Technical Data

• Direct UV-lamp light: TUV 15 W (long life -8000hr) under timer control, one open UV lamp)
• Radiation type: Ultraviolet (254 nm), ozone free UV-recirculator under control of the switch 2 located on the front panel of the Box
• Visible light lamp: TLD 15W for lighting of the working place of the Box
• Plexiglass type: Polymethylmethacrylate, Altuglas EX5.5.
• Optical transmission (visible light): 92%
• UV-protection: Provided
• Thickness of plexiglass: sides 4 mm upper front side 8 mm
• LED time controller of UV-exposure: 0 - 24 h
• Working place: 650 x 475 mm
• Overall size: 690 x 515 x 555 mm
• Power: 230 V, 50/60 Hz, 60W
• Weight: 27 kg
