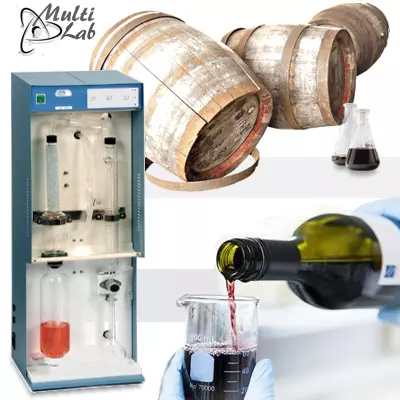

Distilator oenologic pentru vinificatie

Analizor aciditatii volatile si continutului de alcool in acord cu normele EEC

Distilator oenologic automat conceput pentru distilarea alcoolului in concordanta cu prevederile Regulamentului CEE nr. 2676/90 (analiza vinului) si a Regulamentului CEE nr. 2870/2000 (analiza bauturilor spirtoase)

Aplicatii: determinarea continutului de alcool in vinuri si bauturi alcoolice, aciditatii volatile si acidului sorbic

Avantaje

- permite determinarea aciditatii volatile; procentului de alcool si aciditatea volatila a vinului; must; lichioruri si a tariei alcoolice
- acuratete mai buna de 0,1%
- determina conținutul de aciditate volatila a Vinului in 6 minute
- determina tariei alcoolice in 3 minute
(suma acizilor volatili ce apartin seriei acetic, aflati sub forma libera sau sub forma de saruri)

Caracteristici generale

Carcasa: otel inoxidabil SS 1810 vopsita epoxy
Camera de analiza din sticla Pyrex
Elemente de incalzire PTFE sunt instalate intr-o camera din sticla DURAN
Sistem de distilare bi-functional: Sistem electric (electrozi cu control electronic automat) si Sistem cu generare de abur (boiler cu control electronic automat)
Display grafic LCD
Panou de control cu membrana

Performanta
• determina conținutul de aciditate volatila a Vinului in 6 - 7 minute
• determina tariei alcoolice in 3 minute
(suma acizilor volatili ce apartin seriei acetic, aflati sub forma libera sau sub forma de saruri)

Specificatii tehnice

• Volumul maxim al probei de distilat: 400 ml
• Oprire automata la sfarsitul distilarii
• Operare simpla, service minim
• Sistem de protectie a generatorului de vapori
• Furnizat impreuna cu tuburi cu Ø 42 mm, 52 mm si 80 mm si un recipient de 200 ml pentru colectarea distilatului
• Oenologie: gradul alcoolic, aciditatea volatila, acid sorbic
• Ciclu de extractie: Senzor Infra Rosu
• Procesul de distilare: vizibil
• Sistem dublu de incalzire: Generator de abur + Electric
• Modul de distilare: automat / reglabil
• Panou de control: cu membrana
• Sistem de racire: apa / recirculare automata / oprire automata
• Timp de distilare:
• - aprox. 3 minute pentru determinarea gradul de alcool / 100ml
• - aprox. 6 minute pentru aciditate volatila / 250 ml
• Materialul de constructie: Otel Inox + PTFE + AKULON de rezistenta mare la temperaturi inalte
• Cupa de distilare: deschisa

Date tehnice

• Debitul apa de racire: aprox. 80 lit./min.
• Generator de abur: 2400 W
• Consum de apa (generator de abur): 1,25 ml.
• Recipient apa distilata: 10 lit.
• Durata distilarii: 7 min./200 ml
• Putere: 2400 W
• Dimensiune externe: 900 x 300 x 300 mm
• Greutate: 20 Kg

Cod produs A11301

Solicit oferta de pret »

Standarized Automatic Oenologic distiller

Apparatus to obtain the distillation of alcohol from alcoholic beverages in accordance with CEE NO. 2676/90 ( WINE ANALYSIS) and CEE NO. 2870/2000 ( ANALYSIS OF SPIRITS.)

Application: Degree of alcohol in wines, Degree of alcohol in spirits, Volatile acids and Sorbic acid.

Main Features

Integrated vapour distillation unit
Designed especially to obtain the distillation of wines and spirits todetermine the alcohol grade by volume, volatile acid, ascorbic acidand other components.
Distillation volume up to 400 ml.
Auto stop at the end of the distillation.Simple operation with minimum service.
Vapour generator protection system.
- Tube Ø 42 mm for volatile acid samples.
- Tube Ø 52 mm for volatile acid samples and 100 ml proof alcohol.
- Tube Ø 80 mm for samples of 200 ml for proof alcohol.
- 200 ml Matrix flask to collect distillate.

Technical Specifications

Validated to the criteria of CEE No. 2676/90 and CEE No. 2870/2000
Distillation speed: 30-40 ml/min (Recover of 200 ml of distillate in5/6 minutes).
Condenser coolant water rate: 80-100 l/hr.
Generator water consumption: 1 and 1.25 ml for each ml of disti-llate.
Vapour generator power: 2400 W.
Electronic controller allows the distillate to set burette level, then, there is no need to fill up with water to a level of 200 ml.

Validation The oenological DE-1626 has been validated by the oenological laboratory INCAVI for the determination of alcohol proof by volumetric analysis, following the criteria of CEE No 2676/90 and CEE 2870/2000.
Analysed samples of hydrated alcohol, different wines and spirits with a high alcohol content.

Technical data

• Refrigeration water flow: aprox.80 l/h.
• Water consumption (steam generator): 1.25 l/h.
• Distilled water volume: 400 ml.
• Approx. distillation time: 7 min./200 ml.
• Power: 2400W
• Dimension: 900 × 300 × 300 mm
• Weight: 20 Kg
• Product code: 4001626

Components supplied with the equipment
Set of tubes and flasks Ø 42, 52 and 80 mm and a 200 ml matrix flask.

Quotation Request »

Accesorii optionale

- Pahar de distilare / Distillation cup 100 ml :: Cod.Prod. F11316
- Pahar de distilare / Distillation cup 200 ml :: Cod.Prod. F11317
- Vas de distilare cu pahar / Flask complete with cap 100 ml :: Cod.Prod. F11310
- Vas de distilare cu pahar / Flask complete with cap 200 ml :: Cod.Prod. F11311
- Vas de distilare cu pahar / Flask complete with cap 250 ml :: Cod.Prod. 9141036
- Sigiliu pentru pahar de distilare / Sealing for distillation cup :: Cod.Prod. X10099
* vezi gama de sticlarie »
- Filtre de hartie .. cutie/100buc de Ø240mm :: Cod.Prod. 9512
- Filtre de hartie .. cutie/100buc de Ø320mm :: Cod.Prod. 9513
* vezi gama de filtre »
- Baie ultrasunete cu sau fara incalzire .. vezi gama de bai ultrasunete »
- Rola de hirtie pentru imprimanta termica
