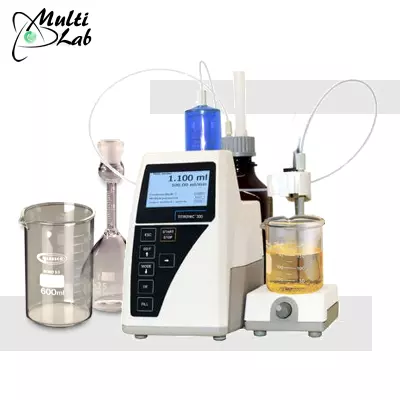

Titrator manual cu control digital

Model Titronic 300

Aplicatii: titrare + dozare

Titrator / Biureta digitala de precizie

Avantaje
Titrare manuala ramane una dintre cele mai eficiente si economice metode de titrari
Biureta poate fi utilizata cu toate lichidele de dozare, solventi si titranti
Rata titrarii poate fi reglata in cinci pasi diferiti pentru a optimiza viteza si precizia
Calculul automat al rezultatelor in formate si unitatii diferite
Rezultatele poate fi printate direct sau salvate in format PDF si CSV pe un stick de memorie USB sau direct pe un PC
Inregistreaza automat valorile cantarite daca este conectat la o balanta

Titrare
Titrare manuala cu controller manual (mouse);
5 viteze de titrare diferite, ajustabile; de asemenea, se poate ajusta viteza in timpul titrarii;
Preluare automata a datelor cantaririi si calcul al rezultatelor;
Documentare a rezultatelor cu ajutorul imprimantei sau a unui stick USB.

Dozare
Viteza reglabila de dozare si umplere;
Umplere automata intre pasii de dozare reglabili;

Caracteristici generale
Titronic 300 este alegerea perfecta pentru dozarea precisa sau pentru titrari manuale.
Unitati interschimbabile cu volum de 20 si 50 ml;
Porturi – 1 x USB A, 1 x USB B si 2 x RS-232;
Tastatura externa conectabila prin USB;
Poate fi controlata prin intermediul porturilor RS232/USB B.

Date tehnice
Interfete de conectare: 1 x USB-A; 1 x USB-B si 2 x RS-232-C
Conexiuni la agitator: TM 50, alimentat direct de la pistonul biuretei
Tastatura de control: Unitatea este operata folosind tastele proprii, unitate de control TZ 3880 si optional testatura de PC (USB)
Display: grafic TFT
Volumul afisat: de la 0000.000 la 9999.999 ml
Rezolutie (afisaj): 0.005-0.025 ml (in functie de unitatea de dozare)
Viteza de dozare: max. 100 ml/min (cu biureta de 50 ml)
Viteza de umplere: reglabila intre 30s si 999s (in functie de volumul pistonul biuretei)
Unitati de dozare: biurete interschimbabile de 20 ml sau 50 ml
Rezolutie biuretei: 8000
Precizie de dozare: eroare sistematica 0.15 %, eroare aleatorica 0.05 % conform EN ISO 8655-6
Alimentare: 100 -240 V~; 50/60 Hz, putere 30 VA
Conformitate: ISO 8655, part 6
CE-mark: EMC: 2004/108/EG; safety EG- Directive 2006/95
Dimensiune 135 x 310 x 205 mm, cu unitate de dozare; fara agitator
Greutate: 2 kg (fara agitator)
Conditii de operare:
- temperatura ambiant: + 10 ... + 40 °C pentru operare si depozitare.
- umiditate conform EN 61 010, Part 1: umidtate relativa maxima 80 % pentru temperatura pana la 31 °C, decreste linear pana la 50 % la temperatura de 40°.


Solicit oferta de pret »

Precision digital titrator for dosing and manual titration
Perform dosing and manual titrating operations easy and efficiantlly. The burette can be used with all dosing liquids, solvents and titrants.

Main Features
Full color display, including graphic curves easily viewed from a distance and at wide angles
Includes two USB and two RS232 ports for expansion and connection of devices such as USB keyboard, USB-storage device, balance, PC andadditional SI Analytics peripherals
Exports the results as PDF and CSV to a memory stick/USB device
Transfer of methods via USB device Standard methods
Daisy-chain capability

Manual Titration
Manual titration means cost effective whereever high precision and flexibility are required
Titration with hand controller (mouse)
Titration rate can be adjusted in five different steps to optimize the titration speed and accuracy
Automatic calculation of results in different units and exportation to a printer or USB memory device
Automatic weight recording when a balance is connected

Dosing
A piston burette is the ideal device for precise dosing tasks:
Adjustable dosing and filling rate for each method
Adjustable filling between each dose step
The intelligent filling function checks if a dosing step is feasible without filling in advance
This reduces faulty operations during a serial dosing process.

Technical specifications
Interfaces: 1 x USB-A and 1 x USB-B, 2 x RS-232-C
Stirrer connection: TM 50, power supply directly through piston burette
Keyboard: The unit is operated using the keys on the device itself, the controller TZ 3880 and optional PC-keyboard (USB)
Display: graphics-capable TFT display.
Volume display: 0000.000 .. 9999.999 ml
Display resolution: 0.005 .. 0.025 ml (depending on dosing unit)
Dosing speed: max. 100 ml/min (with 50 ml unit)
Filling speed: min 30s to 999s adjustable (time according to the cylinder volume)
Dosing units: 20 ml or 50 ml dosing unit, interchangeable
Burette resolution: 8000
Dosing accuracy: systematic error 0.15 %, random error 0.05 % in compliance with EN ISO 8655-6
Power supply: 100 -240 V~; 50/60 Hz, power input 30 VA
Conformity: ISO 8655, part 6
CE-mark: EMC: 2004/108/EG; safety EG- Directive 2006/95
Dimensions: 135 x 310 x 205 mm, including dosing unit, without stirrer
Weight: 2 kg (without stirrer)
Ambient conditions:
- ambient temperature: + 10 .. + 40 °C for operation and storage.
- humidity according to EN 61 010, Part 1:Max. relative humidity 80 % for temperatures up to 31 °C, linear decrease down to 50 % relative humidity at a temperature of 40°.


RFQ »



Cod comanda / Ordering information

Model Descriere / Description Cod prod.
T 300/20 M1 Titronic 300 fara agitator magnetic
Livrarea contine unitate asamblata de baza cu biureta de dozare de 20 ml, controlor manual TZ3880, dispozitive de prindere necesare, furtune, fittinguri si varf de titrare, stand cu tija
285225800
TITRONIC 300 without magnetic stirrer
TITRONIC 300 basic unit with ready to use assembled 20 ml dosing unit, manual controller, titration clamp, stand rod and power supply 100-240 V
T 300/50 M1 Titronic 300 fara agitator magnetic
Livrarea contine unitate asamblata de baza cu biureta de dozare de 50 ml, controlor manual TZ 3880, dispozitive de prindere necesare, furtune, fittinguri si varf de titrare, stand cu tija
285225810
TITRONIC 300 without magnetic stirrer
TITRONIC 300 basic unit with ready to use assembled 50 ml dosing unit, manual controller TZ 3880, titration clamp, stand rod and power supply 100-240 V
T 300/20 M2 Titronic 300 cu agitator magnetic
Livrarea contine unitate asamblata de baza cu biureta de dozare de 20 ml, agitator magnetic TM50 , controlor manual TZ 3880, dispozitive de prindere necesare, furtune, fittinguri si varf de titrare, stand cu tija
285225820
TITRONIC 300 with magnetic stirrer
TITRONIC 300 basic unit with ready to use assembled 20 ml dosing unit, magnetic stirrer TM 50, manual controller, titration clamp, stand rod and power supply 100-240 V
T 300/50 M2 Titronic 300 cu agitator magnetic
Livrarea contine unitate asamblata de baza cu biureta de dozare de 50 ml, agitator magnetic TM50 , controlor manual TZ 3880, dispozitive de prindere necesare, furtune, fittinguri si varf de titrare, stand cu tija
285225830
TITRONIC 300 with magnetic stirrer
TITRONIC 300 basic unit with ready to use assembled 50 ml dosing unit, magnetic stirrer TM 50, manual controller, titration clamp, stand rod and power supply 100-240 V





Accesorii optionale / Optional accesories

Model Descriere Description Cod prod.
TM 50 Agitator magnetic Magnetic stirrer 285225840
TZ 3835 Testatura- interfata USB USB-keyboard 285220410
TZ 3830 Interfata sistem USB USB-HUB 285220420
TZ 3803 Reactiv sticla bruna de 1 lit. Reagent bottle, amber, 1lit. 285220590
