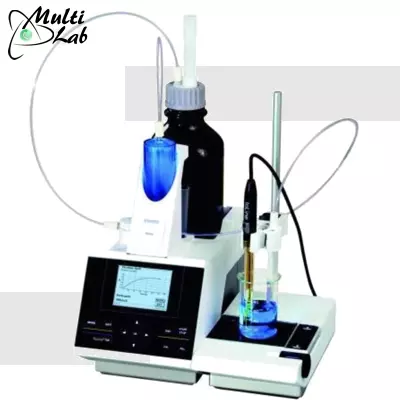

Sistem de titrare universal multifunctional

Model TitroLine 7800

Domenii de aplicatie
• Determinarea continutului de sare din alimente si preparate (cascaval, branza, sosuri, ketchup,..etc)
• determinarea acidităţii totale si SO2 din vinuri , musturi si bauturi
• Numarul de Formol
• Grade de aciditate a aluatul de paine
• Numarul de Iod si de peroxid
• Azotul la sistemul Kjeldahl
• Continutul de clor in apa potabila
• Alcanitate (p + m-valoare)
• Determinarea duritatii totale metoda de titrare FOS / TAC
• Determinarea urme de apa din probe solide conform ISO 15512, ASTM D6869

Titrator universal multiparametric cu tehnologie IDS

Caracteristici generale
Sistemul de titrare TitroLine 7800 este un procesor universal multiparametric versatil pentru titrari potentiometrice cu electrozi analogice sau cu electrozi digitale inteligente IDS pana la titrari volumetrice Karl Fisher; determina valorii pH-ului si a valorii ORP, conductivitatea pana la oxigen dizolvat; astfel interferente externe, precum umiditatea, campul electro-magnetic sint eliminate aveti increderea in determinarea facuta

Avantaje
- Display mare color, valorile pot fi vizualizate de la distanta si de la diferite unghiuri
- Cu modulul interschimbabil datele despre unitatile folosite si de reactivi sunt salvate si identificate automat
- Porturi (interfete) multiple 2 x USB-host, 1 x USB-PC si 2 x RS232 pentru conectarea la PC, cititor de barcod, imprimanta, testatura, mouse, balanta, stick memorie USB, etc.
- Salvare rezultatelor in format PDF si CVS inclusive metoda de transfer
- Aplicati multiple pentru metode standard de titrari potentiometrice si titrari Karl Fischer
- Un port special pentru senzori digitali wireless IDS

Date tehnice

Model TitroLine 7800
Display Color grafic 3.5" de 1/4 VGA
Intrare analogica de masurare pH/mV cu electrod de referinta pH/mV-input cu traducator de 24 bit
Mufa electrodul este conform DIN 19 262 sau optional cu mufa tip insertie BNC
RFID receptor pentru electrozi digitali SI Analytics ID - 3.0 ... 18.00 / - 2000 ... 2000
0.001 / 0,1
0.002 / 0.1 mV ± 1 Digit
Domeniu masurare pH/mV
Rezolutie afisaj pH/mV
Acuratete pH/mV (fara senzor)
- 3.0 ... 18.00 / - 2000 ... 2000 0.001
0.1 0.002
0.1 mV ±1 Digit
Intrari de masurare 2 x IDS
Acuratete +/- 1 digit 13/5000 pe langa cel folosit de electrodul IDS
pH 0.000 ... 14.000 +/-0.004 pH
mV +/- 1200.0 mV +/- 0.2 mV
Temperatura -5.0 ... 105.0. °C +/- 0.2 °C
Conductivitate 0.00 ... 2000 mS/cm +/- 0.5 % de la m.v.
Calibrare pH (analogic si digital IDS) in 2 sau 3 puncte cu DIN/NIST sau cu solutii tampon
Solutiile de tampon poate fi programate de unitate
Calibrare conductivitate (IDS) 1 point with 0.01 mol/l KCl
Compensare conductivitate termica (IDS) Automatic/manual functie nLF ne-linear pentru ape naturale conform EN 27888 si functie de compensare lineara de la 0.000 la 10.000 %/K pentru apa ultra-pura
Intrare de masurare punctul final (mufa 2 x 4 mm)
Masurare domeniu µA
Rezolutie afisajul µA
Acuratete µA (fara senzor)
Conector (µA) pentru electrozi de platina dubla
Polarizare de voltaj reglabil 40 .. 220 mV
0 .. 100
0.1
0.2 ± 1 digit
Intrare de masurare temperatura ( mufa 2 x 4 mm)
Masurare domeniu °C
Rezolutie afisajul °
Acuratete °C (fara senzor)
pentru termometru de rezistenta Pt 1000
NTC 30 kOhm - 75 ... 175
-40 .. 170 °C
0.1°
0.2 K ± 1 digit/0.3 K ± 1 digit
Interfete de conectare 1 x LAN, 2 x USB-A, 1 x USB-B 2 x RS 232
Conectare balanta RS 232
Imprimanta (USB-A) HP PCL, Seiko DPU S445, PDF
Material carcasa Polipropilene
Panou de comenzi acoperit cu poliester
Dimensiuni 15.3 x 45 x 29.6 cm (W x H x D), inaltime cu unitate de interschimb
Conditii de operare si depozitare + 10 .. + 40 °C
Greutate 2.3 kg pentru unitate de baza,
3.5 kg intregul sistem cu unitate de interschimb (fara agitator)
Modul interschimbabil
(5, 10, 20 and 50 ml)
Supapa: PTFE/ETFE
Cilindru: sticla borosilicata 3.3 (DURAN)
Furtune FEP, albastru
Rezolutie biureta (pasi) 10,000
Acuratete de dozare conform DIN EN ISO 8655, part 3 Acuratete : > 0.15 %
Precizie: > 0.05 - 0.07 % (in functie de unitate de interschimb utilizata)




Solicit oferta de pret »

Universal titrator with digital intelligent sensor technology IDS

The TitroLine 7800 enhanced the universal features of the TitroLine 7750 with an additional IDS measurement input. Hence the TitroLine 7800 is able to perform potentiometric titrations with analogue or IDS electrodes up to volumetric Karl Fischer titrations. The IDS measuring input is multifunctional. Digital sensors for the determination of pH and ORP value, the conductivity up to the dissolved oxygen can be connected.

Main Features
- Highly visible full color display, that can be easily viewed from a distance and extreme angles
- With new interchangeable modules which all relevant reagent and unit data can be stored
- Thanks to the 2 x USB-host, 1 x USB-PC and 2 x RS232 ports very expandable; Connectable are e.g. USB keyboard, USB printer, barcode reader, USB flash drives, balances, PC und further SI Analytics devices such as piston burettes and sample changers
- Storage of results using via USB port (PDF – and CSV -format) including method transfer
- With standard methods for potentiometric and KF titration
- Second digital measuring port for intelligent digital sensors (IDS)

Technical data

Model TitroLine 7800
Display Color graphics 3.5 inches -1/4 VGA
Measurement input 1 (analogue) pH/mV with reference electrode input pH/mV-input with 24 bit transducer
Electrode socket according to DIN 19 262 or additional with BNC socket insert
RFID receiver for SI Analytics ID electrodes - 3.0 ... 18.00 / - 2000 ... 2000
0.001 / 0,1
0.002 / 0.1 mV ± 1 Digit
Measurement range pH/mV
Display resolution pH/mV
Accuracy pH/mV (without sensor)
- 3.0 ... 18.00 / - 2000 ... 2000 0.001
0.1 0.002
0.1 mV ±1 Digit
Measurement input 2 (IDS) Accuracy +/- 1 digit in
dependence from the used IDS-electrode
pH 0.000 ... 14.000 +/-0.004 pH
mV +/- 1200.0 mV +/- 0.2 mV
Temperature -5.0 ... 105.0. °C +/- 0.2 °C
Conductivity 0.00 ... 2000 mS/cm +/- 0.5 % from m.v.
Calibration pH (analogue and IDS) 2 or 3 - point calibration with DIN/NIST or technical buffers.
Own buffers can be programmed.
Calibration conductivity (IDS) 1 point with 0.01 mol/l KCl
Temperature compensation conductivity (IDS) Automatic/manual nLF non-linear function natural waters according EN 27888 and ultra-pure water function, linear compensation from 0.000 .. 10.000 %/K
Measurement input Dead stop (2 x 4 mm socket)
Measurement range µA
Display resolution µA
Accuracy µA (without sensor)
Connector (µA) for double platinum electrodes
Polarization voltage variably adjustable 40 .. 220 mV
0 .. 100
0.1
0.2 ± 1 digit
Measurement input temperature (2 x 4 mm socket)
Measurement range temperature °C
Display resolution °
Accuracy °C (without sensor)
For Pt 1000 resistance thermometer
NTC 30 kOhm - 75 ... 175
-40 .. 170 °C
0.1°
0.2 K ± 1 digit/0.3 K ± 1 digit
Interfaces 1 x LAN, 2 x USB-A, 1 x USB-B 2 x RS 232
Balance connection RS 232
Printer (USB-A) HP PCL, Seiko DPU S445, PDF
Housing material Polypropylene
Front keyboard Polyester coated
Housing dimensions 15.3 x 45 x 29.6 cm (W x H x D), height with interchangeable unit
Ambient conditions + 10 .. + 40 °C for operation and storage
Weight 2.3 kg for basic unit, 3.5 kg for complete device incl. interchangeable unit (with empty reagent bottle, without magnetic stirrer)
Ambient conditions Ambient temperature: + 10 ... + 40 °C for operation and storage
Intelligent interchangeable modules
(5, 10, 20 and 50 ml)
Valve: PTFE/ETFE Cylinder: borosilicate glass 3.3 (DURAN) Hoses FEP, blue
Burette resolution (steps) 10,000
Dosing accuracy according DIN EN ISO 8655, part 3 Accuracy : > 0.15 %
Precision: > 0.05 - 0.07 % (depending on the used interchangeable unit)




RFQ »



Cod comanda / Ordering information

Model Descriere / Description Cod prod.
TL 7800 TitroLine 7800 basic unit with two measuring inputs, one analogue and one digital (IDS) measuring input 285220980
TitroLine 7800 unitate de baza cu doua intrari de masurare, o mufa analogica si o mufa digitala IDS
TL 7800-M1 TitroLine 7800 basic unit with two measuring inputs, one analogue and one digital (IDS) measuring input, with magnetic stirrer TM 235 285220990
TitroLine 7800 unitatea de baza cu doua intrari de masurare, o mufa analogica si o mufa digitala (IDS), cu agitator magnetic TM 235
TL 7800-TitriSoft basic unit with two measuring inputs, one analogue and one digital (IDS) measuring input, with magnetic stirrer TM 235 and TitriSoft 3.2 285221030
Unitate de baza cu intrari de masurare, o mufa analogica si una digitala IDS cu agitator magnetic TM 235 si program software TitriSoft 3.2





Accesorii optionale / Optional accesories

Model Descriere / Description Cod.produs
WA 05 5 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip 285220300
Unitate interschimbabila de 5 ml cu chip integrat pentru datele de reactivi, cu sticla maro pentru titrant, GL 45 si adaptor sticla S 40 , tuburi, varf de titrare si tuburi de picurare
WA 10 10 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip 285220310
  Unitate interschimbabila de 10 ml cu chip pentru datele de reactivi, cu sticla maro pentru titrant, GL 45 si adaptor sticla S 40 , tuburi, tub de picurare si varf de titrare
WA 20 20 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip 285220320
Unitate interschimbabila de 20 ml cu chip pentru datele de reactivi, cu sticla maro pentru titrant, GL 45 si adaptor sticla S 40 , tuburi, tub de picurare si varf de titrare
WA 50 50 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip 285220350
Unitate interschimbabila de 50 ml cu chip pentru datele de reactivi, cu sticla maro pentru titrant, GL 45 si adaptor sticla S 40 , tuburi, tub de picurare si varf de titrare
TM 235 Magnetic stirrer for vessels up to 500 ml, agitator speed infinitely adjustable from 500 - 2000 r/min, for the connection to TitroLine 6000/7000 and TITRONIC 500 285220400
Agitator magnetic pentru capacitate de 500 ml / viteza reglabila 500 - 2000 r/min, pentru TitroLine 6000/7000 si TITRONIC 500
TM 235 KF 115-230 V Titriation stand with pump; Scope of delivery: Basic unit with 1 l DURAN -reagent bottle TZ 1791, 1 l DURAN-waste bottle TZ 1792, moisture bottle, tubes and screw threads, power supply TZ 1855 (110 to 240 V) 285220900
TZ 1052 KF-drying stove, 230 V 285214721
TZ 1060 Accessories set for KF drying stove TZ 1052/TZ1055 285218115
TZ 1065 Flowmeter with valve and hose connectors for gas volumes (air, nitrogen) from 50 - 500 ml/min. 285201973
Debitmetru cu supapasi furtuni, dispozitive de conectare connectors pentru volum de gaze (aer, nitrogen) de la 50 - 500 ml/min.
KF 1100 Micro double platinum electrode for Karl Fischer titrations, with fixed cable, double platinum pin and tapper NS 7.5 for TZ 1770 and TZ 1772 285102030
TZ 1748 Stand rod stainless steel Ø 10 mm 285216560
TZ 1770 Karl Fischer titration vessel. DURAN glass vessel TZ 1775 (approx. 30...150 ml), removable head made of polypropylene/PTFE, 1 drilling NS 19, NS 14,5, NS 7,5 and 3 drillings with screw threads, titration tip, moisture trap and weighing funnel 285216677
TZ 1789 Starter kit KF consisting of molecular sieve, needles with syringes and glass wool 285221120
TZ 3863 USB-thermo printer, 112 mm for TitroLine 6000/7000/7500 KF/7500 KF trace/7750 and TITRONIC 500 285220480
Imprimanta termica 112 mm cu interfata USB
TZ 3864 Thermal paper for TZ 3863 with very high durability (5 rolls) 285220710
TZ 3865 DIN A4 standard printer, HP PCL-compatible, with USB-connection cable, 230 V 285220440
