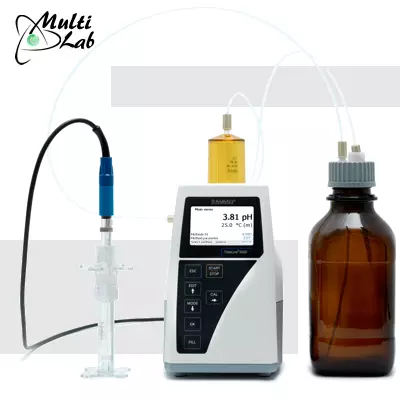

Titrator digital multifunctional pentru dozare si titrare manuala

Model TitroLine 5000

Aplicatii: titrare + dozare

Titrator automat inteligent

TitroLine 5000 este un sistem de titrare automat integrat cu biurete si pH/mV-metru pentru o parametrizare metodologica optima; usor de utilizat, gata configurat pentru titrari automate

Caracteristici generale
Display grafic color, curbele de titrare si rezultatele poate fi citite de o distanta mare si din diferite unghiuri
Include 2 interfete de USB si 2 porturi de RS232 pentru conectare la mai multe dispozitive (testatura, stick memorie USB, balanta, PC, etc..)
Exportul si stocarea rezultatelor prin portul USB in format PDF si CVS
Transfer de metode prin stick de USB
Metode standarizate pentru o serie de aplicatii (valoare blank etc.)
Masuratori pH/mV de inalta rezolutie si raspuns rapid, avand intrari pentru electrozi pH, ORP, Argint, mV
Prevazut cu intrare pentru sonda de temperatura Pt1000 si NTC pentru compensare automata de temperatura
Metode standard pre-instalate pentru FOS/TAC, pH, alcalinitate, aciditate totata in vinuri, clor, azot total conform metodei Kjeldahl, index de permanganat si COD, cloruri in apa uzata, etc.
Titrare lineara si dinamica la punctele de echivalenta
Titrari la punctele finale de pH si mV-final
Posibilitate de titrare / dozare si in mod manual

Date tehnice
Intrari masurare pH/mV: mufa de Electrod conform DIN 19 262 sau otional mufa de insertie tip BNC (Z 860)
Intrari masurare temperatura: mufa de 2 x 4 mm pentru sonda Pt 1000/NTC 30
Interfete: 1 x USB-A si 1 x USB-B :: 2 x RS-232-C
Conectare agitator: susrsa de alimentare TM 50 direct de la pistonul biuretei
Tastatura: direct folosind tastele de pe unitate, unitate de control TZ si optional tastatura-USB de PC
Display: grafic TFT
Afisaj: 0000,000 .. 9999,999 ml
Rezolutie afisajul: 0.005 .. 0.025 ml (in fucntie de unitatea de dozare)
Viteza de dozare: max. 100 ml/min (unitate de 50 ml)
Viteza de umplere: reglabila intre 30s si 999s (in functie de volumul cilindrului)
Unitati de dozare: interschimbabile de 20 ml sau 50 ml
Rezolutie biureta: 8000
Acuratete de dozare: erori sistematice 0.15 %, erori aleatorii 0.05 % in conformitate cu EN ISO 8655-6
Alimentare: 100 -240 V~; 50/60 Hz, putere la intrare 30VA
Conformitate: ISO 8655, part 6
Marcaj CE: EMC: 2004/108/EG; safety EG- Directive 2006/95
Dimensiuni: 135 x 310 x 205 mm (W x H x D), inclusiv unitatea de dozare, fara agitator
Greutate: 2.3 kg (fara agitator)
Conditii de operare / Temperatura ambiantala: + 10 ... + 40 °C pentru operare si depozitare
Umiditate conform EN 61 010, Part 1:umiditate relativa maxima 80 % pentru temperaturi de pana la 31 °C, in descrestere lineara pana la 50 % umiditate relativa la temperaturi de 40 °C


Solicit oferta de pret »

Automatic titration system
Combines a syringe burette and pH/mV meter plus integrated intelligence. This intelligence automitcally carries out the parameterisation methods

Main Features
Full color display, including online curves that can be easily viewed from a distance and at extreme angles
Includes two USB and two RS232 ports for expansion and connection of devices such as USB keyboard, USB-storage device, balance, PC and additional SI Analytics peripherals
Exports the results as PDF and CSV to a memory stick/USB device
Transfer of methods via USB device
Standard methods
Daisy-chain capability
High resolution pH/mV-measurement input for pH-, ORP-, silver - and further mV-electrodes
Pt 1000 and NTC 30 temperature measurement input for automatic temperature compensation
Pre-installed standard methods for FOS/TAC, alkalinity, total acidity in drinks, chloride etc.
Linear and dynamic titration to equivalence points
Titration to pH and mV-end points
Same manual titration and dosing function as the piston burette

Technical specifications
Measurement input pH/mV: pH/mV-input with Electrode socket according to DIN 19 262 or additional with BNC socket insert (Z 860)
Measurement input temperature: Pt 1000/NTC 30: (socket 2 x 4 mm)
Interfaces: 1 x USB-A and 1 x USB-B, 2 x RS-232-C
Stirrer connection: TM 50 power supply directly through piston burette
Keyboard: The unit is operated using the keys on the device itself, the controller TZ 3880 and optional PC-keyboard (USB)
Display: graphics-capable TFT display
Volume display: 0000,000 .. 9999,999 ml
Display resolution: 0.005-0.025 ml (depending on dosing unit)
Dosing speed: max. 100 ml/min (with 50 ml unit)
Filling speed: min 30 s to 999 s adjustable (time according to the cylinder volume)
Dosing units: 20 ml or 50 ml dosing unit, interchangeable
Burette resolution: 8000
Dosing accuracy: systematic error 0.15 %, random error 0.05 % in compliance with EN ISO 8655-6
Power supply: 100 -240 V~; 50/60 Hz, power input 30 VA
Conformity: ISO 8655, part 6
CE-mark: EMC: 2004/108/EG; safety EG- Directive 2006/95
Dimensions 135 x 310 x 205 mm (W x H x D), including dosing unit, without stirrer
Weight: 2.3 kg (without stirrer)
Ambient conditions / temperature: + 10 ... + 40 °C for operation and storage
Humidity conditions according to EN 61 010, Part 1: Max. relative humidity 80 % for temperatures up to 31 °C, linear decrease down to 50 % relative humidity at a temperature of 40°C


RFQ »



Cod comanda / Ordering information

Model Descriere / Description Cod prod.
TL 5000/20 M1 TitroLine 5000 with 20 ml dosing unit Basic unit without electrode, with ready to use assembled 20 ml dosing unit, manual controller, titration clamp, stand rod, magnetic stirrer TM 50 and power supply 100-240 V 285225760
TitroLine 5000 cu unitate de dozare de 20 ml unitate de baza fara electrod, cu biureta de 20 ml, controlor manual, clema de titrare, tija suport, agitator magnetic TM 50 si sursa de alimentare
TL 5000/50 M1 TitroLine 5000 with 50 ml dosing unit Basic unit without electrode, with ready to use assembled 50 ml dosing unit, manual controller, titration clamp, stand rod, magnetic stirrer TM 50 and power supply 100-240 V 285225770
TitroLine 5000 cu unitate de dozare de 50 ml unitate de baza fara electrod, cu biureta de 50 ml, controlor manual, clema de titrare, tija suport, agitator magnetic TM 50 si sursa de alimentare
TL 5000/20 M2 TitroLine 5000 with 20 ml dosing unit Basic unit with pH electrode and buffer set, with ready to use assembled 20 ml dosing unit, manual controller, titration clamp, stand rod, magnetic stirrer TM 50 and power supply 100-240 V 285225780
TitroLine 5000 cu unitate de dozare de 20 ml unitate de baza cu electrod de pH si set de tampoane, cu biureta de 20 ml, controlor manual, clema de titrare, tija suport, agitator magnetic TM 50 si sursa de alimentare
TL 5000/50 M2 TitroLine 5000 with 50 ml dosing unit Basic unit with pH-electrode and buffer set, with ready to use assembled 50 ml dosing unit, manual controller, titration clamp, stand rod, magnetic stirrer TM 50 and power supply 100-240 V 285225790
TitroLine 5000 cu unitate de dozare de 50 ml unitate de baza cu electrod de pH si set de tampoane, cu biureta de 50 ml, controlor manual, clema de titrare, tija suport, agitator magnetic TM 50 si sursa de alimentare
TL 5000/20 M3 TitroLine 5000 with 20 ml dosing unit Basic unit with Ag-electrode, with ready to use assembled 20 ml dosing unit, manual controller, titration clamp, stand rod, magnetic stirrer TM 50 and power supply 100-240 V 285225850
TitroLine 5000 cu unitate de dozare de 20 ml unitate de baza cu electrod -Ag pentru halogenuri, cu biureta de 20 ml, controlor manual, clema de titrare, tija suport, agitator magnetic TM 50 si sursa de alimentare





Accesorii optionale / Optional accesories

Model Descriere / Description Cod.produs
WA 05 5 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip 285220300
Unitate interschimbabila de 5 ml cu chip integrat pentru datele de reactivi, cu sticla maro pentru titrant, GL 45 si adaptor sticla S 40 , tuburi, varf de titrare si tuburi de picurare
WA 10 10 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip 285220310
  Unitate interschimbabila de 10 ml cu chip pentru datele de reactivi, cu sticla maro pentru titrant, GL 45 si adaptor sticla S 40 , tuburi, tub de picurare si varf de titrare
WA 20 20 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip 285220320
Unitate interschimbabila de 20 ml cu chip pentru datele de reactivi, cu sticla maro pentru titrant, GL 45 si adaptor sticla S 40 , tuburi, tub de picurare si varf de titrare
WA 50 50 ml exchangeable unit with integrated chip for reagent data, with brown glass bottle for titrant, GL 45 and S 40-bottle adapter, tubes, drip tube and titration tip 285220350
Unitate interschimbabila de 50 ml cu chip pentru datele de reactivi, cu sticla maro pentru titrant, GL 45 si adaptor sticla S 40 , tuburi, tub de picurare si varf de titrare
TM 235 Magnetic stirrer for vessels up to 500 ml, agitator speed infinitely adjustable from 500 - 2000 r/min, for the connection to TitroLine 6000/7000 and TITRONIC 500 285220400
Agitator magnetic pentru capacitate de 500 ml / viteza reglabila 500 - 2000 r/min, pentru TitroLine 6000/7000 si TITRONIC 500
TM 235 KF 115-230 V Titriation stand with pump; Scope of delivery: Basic unit with 1 l DURAN ®-reagent bottle TZ 1791, 1 l DURAN®-waste bottle TZ 1792, moisture bottle, tubes and screw threads, power supply TZ 1855 (110 to 240 V) 285220900
TZ 1052 KF-drying stove, 230 V 285214721
TZ 1060 Accessories set for KF drying stove TZ 1052/TZ1055 285218115
TZ 1065 Flowmeter with valve and hose connectors for gas volumes (air, nitrogen) from 50 - 500 ml/min. 285201973
Debitmetru cu supapasi furtuni, dispozitive de conectare connectors pentru volum de gaze (aer, nitrogen) de la 50 - 500 ml/min.
KF 1100 Micro double platinum electrode for Karl Fischer titrations, with fixed cable, double platinum pin and tapper NS 7.5 for TZ 1770 and TZ 1772 285102030
TZ 1748 Stand rod stainless steel Ø 10 mm 285216560
TZ 1770 Karl Fischer titration vessel. DURAN® glass vessel TZ 1775 (approx. 30...150 ml), removable head made of polypropylene/PTFE, 1 drilling NS 19, NS 14,5, NS 7,5 and 3 drillings with screw threads, titration tip, moisture trap and weighing funnel 285216677
TZ 1789 Starter kit KF consisting of molecular sieve, needles with syringes and glass wool 285221120
TZ 3863 USB-thermo printer, 112 mm for TitroLine 6000/7000/7500 KF/7500 KF trace/7750 and TITRONIC 500 285220480
Imprimanta termica 112 mm cu interfata USB
TZ 3864 Thermal paper for TZ 3863 with very high durability (5 rolls) 285220710
TZ 3865 DIN A4 standard printer, HP PCL-compatible, with USB-connection cable, 230 V 285220440
