precuratitor seminte boabe cereale

Cel mai bine vandut umidometru de cereale din Europa




Curatator / Sortator cereale si seminte pentru laborator si industrie

Model ML-C1

Aparat pentru eliminarea impuritatilor si a reziduurilor din masa de cereale cu sistem de curatare de tip “site plane”

Automatic Grain Cleaner


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Pentru determinarea cantitatii totale de impuritati; evaluarea calitatii cerealelor si semintelor.
Esential pentru depozite si laboratoare pentru pregatirea prealabila a probelor in vederea evaluarii calitative a cerealelor.
Proba supusa analizei este impartita in 4 fractii cu posibilitatea determinarii procentuale a continutului de cereale fara impuritati / continutul in impuritati volatile, impuritati fine si impuritati grosiere

Date tehnice
Performanta: 1kg de proba in 45 secunde
Metoda de separare a impuritatilor: pneumatica si sitare
Nr. de fractii colectate: 4
Mod de functionare: continuu
Greutatea necesara unei sarje de analiza: 1000g
Alimentarea cu proba si ventilatia poate fi ajustata de catre operator
Durata de testare: 45 sec.
Curatarii automate a sitelor
Alimentare: 220V, 50 Hz
Putere: 380 W
Numar de site: 4
Functionare silentioasa si fara vibratii

Main features
Automatically obtain fully cleaned homogeneous product
Price evaluation regarding impurities.
Determine grain size of the sample
Clean samples for further laboratory analysis.
Complete analysis of 1kg sample in 45 seconds:
- Determination quantaty of cleaned grains
- Light weight materials and dust
- Large size substances
- Broken and small size materials

Technical data
Consists of four types of cleaning sieves
Insertion and removable of screens are easy
Different sized screens are available for wheat, barley, rice, lentils, maize, chickpea and sunflower
Power supply: 220V-50 Hz AC.

Accesorii optionale: set de site pentru porumb, griu, rapita, secare


Curatator / Sortator cereale si seminte pentru laborator si industrie

Model ML-GC400

Curatator si sortator de probe de cereale cu sistem de curatare de tip “tambur rotativ”

Automatic Grain Cleaner


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Echipament complet automat cu imprimanta integrata, destinat curatarii cantaririi si sortarii pentru gradarea cerealelor, a orzului maltificabil, a semintelor sau nutreturilor.
Rezultatele procesului de curatare si sortare corespund celor ale unei masini normale de curatat (tarar), astfel ca aparatul poate fi utilizat pentru determinarea continutului de impuritati si a celui de sparturi dintr-o proba de cereale. Astfel, calitatea unui lot primit poate fi clasificata rapid, direct la receptie.
Operatia de curatare si cântarire complet automate
Adecvat pentru diferite cereale
Sistem integrat de autocuratare
panou de control si afisaj sensibil la atingere
Domeniu de utilizare larg (ex. porumb, seminte oleaginoase, orez, cereale, fasole, soia, etc.

Date tehnice
Dimensiune LxWxH: 605x355x650 mm
Greutate: 36 kg
Alimentare: 12 Volt
Greutate maxima de proba: circa 800 gr. (setabil)
Greutate minima de proba: circa 200 gr. (setabil)
Functionare silentioasa si fara vibratii

Main features
Automatic Grain cleaner for measurement of the cereals impurities, it is suitable and essential in the modern cereals storage, mills, laboratories and other activities of the agro industrial range
The innovative system of Grain Cleaner is simply the complete automatization of the process, in fact the user has only to load the product in the hopper, and after few seconds of working, Grain Cleaner is able to arrange the reliable percentage of impurity in the sample and print one or more tickets
The weighing in entry, the clearing with the drum conveyor pulley with different holes (for every kind pf product), the electronic run of the air flow for the light parts and, as last thing, the ended weighing of the clean product permit to Grain Cheaner the possibilty to work giving a great reliability. The standard clearing can be applied for every type of cereal and oilseed crops, peas, beans or difficult products like sunflower seed
Simple Operation Switch on the instrument with ON/OFF on the right side and after few seconds from the welcome messagge, Grain Cleaner is ready to work
After introducing the sample to measure in the hopper, press the START button and the instrument starts the working.
The weighing motorized hopper is open and the product is unloaded into the loading hopper, through a measuring spoon, it enters in the drum conveyor where in the first zone the impurities are eliminated, the small seed and the dust fall down in the drawer under the instrument.
In the second zone the product is separeted from the small impurities which are push from the air pression of the fan.
The clean product is stored in the principal drawer and it automatically weights from the system. At the end, in the third zone, is separated from the bigger parts of impurities which fall down in their drawer.
Advantages
Working totally automatic without any operation from the user
The clearing of the sample permits a careful estimation of all the deliveries
The price can be negotiated according to the clean samples
Every component of the instrument is accessibile with the rapid and easy substitution of the drum conveyor
This instrument can be used for a great quantity of products
The drum conveyor has a autocleaning system
The clean product permits a careful measurement of the moisture percentage and the quality of product
Works silently without vibration and it doesn’t need service

Technical data
Dimension LxWxH: 605x355x650 mm
Weight: 36 kg
Power supply: 12 Volt
Absorption: mA
Max weight sample: 800 gr. circa (settable)
Min weight sample: 200 gr. circa (settable)

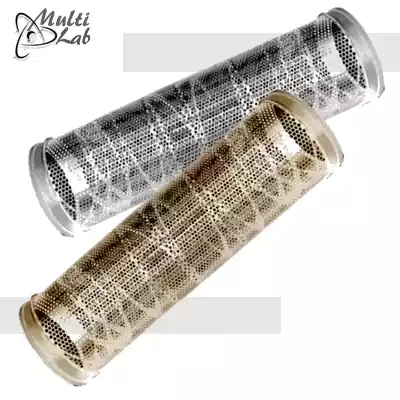

Drum conveyor type: wheat, corn, soyabean, barley, rice...




Curatator / Sortator de cereale si seminte pentru producatorii agricoli si industrie

Seria ML-ISM

Masini pentru eliminarea impuritatilor si a reziduurilor din masa de cereale

Industrial Automatic Grain Cleaner


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Utilaj aerodinamic curata culturile cerealiere cu ajutorul sitelor sale rotative si a aerului.
Procesul de curatare in doua etape asigura eliminarea impuritatilor grele si usoare; adecvat pentru toate tipurile de produse cerealiere
Curatarea sitelor se realizeaza automat

Date tehnice

Model Capacitate de curatare / sortare cereale Sortare preciza seminte Putere Dimensiune LxWxH Greutate
MLISM-200 200 ton/ora pana la 100 ton/ora 6 - 22 kW/ora, 380V, 50 Hz 3130 x 1750 x 3017 mm 960 kg
MLISM-150 150 ton/ora pana la 75 ton/ora 6 - 15 kW/ora, 380V, 50 Hz 3130 x 1750 x 3017 mm 910 kg
MLISM-100 100 ton/ora pana la 50 ton/ora 4 - 11 kW/ora, 380V, 50 Hz 3130 x 1750 x 3017 mm 860 kg
MLISM-50 50 ton/ora pana la 25 ton/ora 0.4 - 6 kW/ora, 380V, 50 Hz 2500 x 1150 x 2400 mm 450 kg
MLISM-40 40 ton/ora pana la 20 ton/ora 0.4 - 5 kW/ora, 380V, 50 Hz 2500 x 1150 x 2400 mm 430 kg
MLISM-30 30 ton/ora pana la 15 ton/ora 0.4 - 4 kW/ora, 380V, 50 Hz 2300 x 650 x 2400 mm 400 kg
MLISM-20 20 ton/ora pana la 10 ton/ora 0.2 - 3 kW/ora, 380V, 50 Hz 2300 x 650 x 2400 mm 400 kg
MLISM-15 15 ton/ora pana la 7 ton/ora 0.4 - 2 kW/ora, 380V, 50 Hz 2300 x 650 x 2400 mm 370 kg
MLISM-10 10 ton/ora pana la 5 ton/ora 0.2 - 0.75 kW/ora, 380V, 50 Hz 2420 x 460 x 1880 mm 150 kg
MLISM-5 5 ton/ora pana la 3 ton/ora 0.2 - 0.55 kW/ora, 380V, 50 Hz 2150 x 460 x 1750 mm 125 kg
MLISM-3 3 ton/ora pana la 1.83 ton/ora 0.2 - 0.37 kW/ora, 380V, 50 Hz 1800 x 350 x 1700 mm 90 kg



Main features
Aerodynamic grain cleaner and sorter (Impeller Separating Machine) developed for any kinds of grain and seed cleaning and sorting (wheat, barley, rice, rye, beans, peas, chickpeas, corn, maize, sunflower, sorghum, soya, oat, buckwheat, rape, mustard, oat, millet, linseeds, any other seeds).
Grain cleaning by air allows this grain cleaning and sorting machine to process the grain with no damage which eliminates grain losses.

Technical data

GRAIN CLEANER Grain cleaning and sorting Precise seed sorting Electricity consumption Dimension LxWxH Weight
MLISM-200 200 ton/hour up to 100 ton/hour 6 - 22 kW/hour, 380V, 50 Hz 3130 x 1750 x 3017 mm 960 kg
MLISM-150 150 ton/hour up to 75 ton/hour 6 - 15 kW/hour, 380V, 50 Hz 3130 x 1750 x 3017 mm 910 kg
MLISM-100 100 ton/hour up to 50 ton/hour 4 - 11 kW/hour, 380V, 50 Hz 3130 x 1750 x 3017 mm 860 kg
MLISM-50 50 ton/hour up to 25 ton/hour 0.4 - 6 kW/hour, 380V, 50 Hz 2500 x 1150 x 2400 mm 450 kg
MLISM-40 40 ton/hour up to 20 ton/hour 0.4 - 5 kW/hour, 380V, 50 Hz 2500 x 1150 x 2400 mm 430 kg
MLISM-30 30 ton/hour up to 15 ton/hour 0.4 - 4 kW/hour, 380V, 50 Hz 2300 x 650 x 2400 mm 400 kg
MLISM-20 20 ton/hour up to 10 ton/hour 0.2 - 3 kW/hour, 380V, 50 Hz 2300 x 650 x 2400 mm 400 kg
MLISM-15 15 ton/hour up to 7 ton/hour 0.4 - 2 kW/hour, 380V, 50 Hz 2300 x 650 x 2400 mm 370 kg
MLISM-10 10 ton/hour up to 5 ton/hour 0.2 - 0.75 kW/hour, 380V, 50 Hz 2420 x 460 x 1880 mm 150 kg
MLISM-5 5 ton/hour up to 3 ton/hour 0.2 - 0.55 kW/hour, 380V, 50 Hz 2150 x 460 x 1750 mm 125 kg
MLISM-3 3 ton/hour up to 1.83 ton/hour 0.2 - 0.37 kW/hour, 380V, 50 Hz 1800 x 350 x 1700 mm 90 kg
