Aparat masurarea vitezei aerului
Aparatura de analiza masura detectie si control » Anemometre » Anemometru portabil multifunctional model HD2303.0
Meteorological Testing Equipments » Anemometers » Anemometer-Thermometer Delta-Ohm HD2303.0
Termo Anemometru portabil
Model HD 2303.0
Model HD 2303.0
Solicit oferta personalizata »
*produsele poate fi achizitionate si prin SEAP / SICAP
Animometru / Termometru viteza vantului
Caracteristici generale
Dimensiune: 140 x 88 x 38 mm
Greutate 160g (cu baterie)
Material exterior: ABS
Display 2x4½ digite cu simboli
Area vizibila: 52 x 42mm
Conditii de operare: -5..50°C / 0..90%RH fara condens
Clasa de protectie: IP67
Alimentare: baterie 3 1.5V tip AA<br>
Autonomie: 200 ore de functionare continua<br>
Putere absorbita: off < 20 A
Unitati de masura °C - °F - m/s - km/h - ft/min - mph - knot - l/s - m3/min - m3/h - ft3/s - ft3/m
*Instrumentul este livrat fara sonde; poate fi dotat cu gamă largă de sonde inteligente tip SICRAM ..vezi gama de sonde conectabile

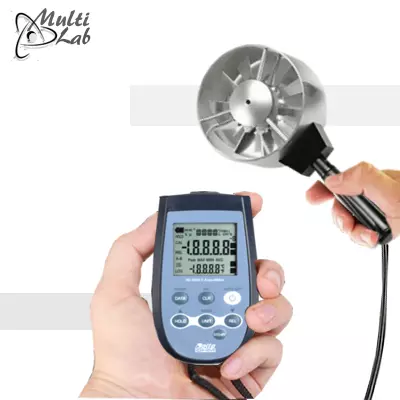

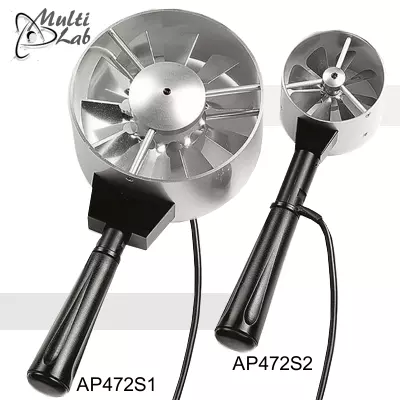

Sonde cu giruetă
| Model | AP472 S1 | AP472 S2 |
|---|---|---|
| Masurare | viteza aerului - debit calculat - temperatura aerului | viteza aerului - debit calculat, |
| Diametru | 100mm | 60mm |
| Mod de masura | ||
| Viteza | girueta (elice) | girueta (elice) |
| Temperatura | termocuplu K | - |
| Domeniu de masurare | ||
| Viteza (m/s) | 0.6 .. 25 | 0.5 .. 20 |
| Temperatura | -25 .. +80 °C | -25 .. +80 °C |
| Rezolutie | ||
| Viteza | 0.01 m/s - 0.1 km/h - 1 ft/min - 0.1 mph - 0.1 knot | |
| Temperatura | 0.1°C | - |
| Acuratete | ||
| Viteza | ±(0.4 m/s +1.5%f.s.) | ±(0.4m/s +1.5%f.s.) |
| Temperatura | ±0.8°C | - |
| Viteza minima | 0.6m/s | 0.5m/s |
| Unitati de masura | ||
| Viteza | m/s – km/h – ft/min – mph – knot | |
| Debit | l/s - m3/s - m3/min - m3/h - ft3/s - ft3/min | |
| Masurare debitul pe sectiunea conductelor | 0.0001 .. 1.9999 m2 | 0.0001 .. 1.9999 m2 |
| Lungime cablu | ~2m | ~2m |

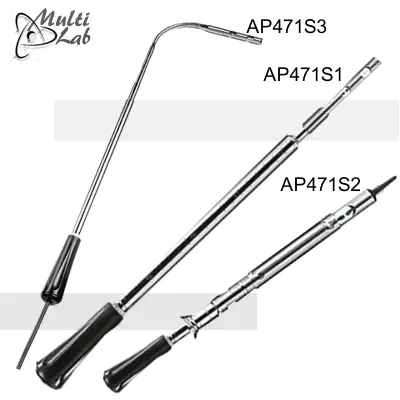

Sonde de fir cald
| Model | AP471 S1 | AP471 S2 | AP471 S3 | AP471 S4 |
|---|---|---|---|---|
| Masurare | viteza aerului - debit calculat - temperatura aerului | |||
| Tip senzor | ||||
| Viteza | NTC thermistor | NTC thermistor | Omnidirectional NTC thermistor | |
| Temperatura | NTC thermistor | NTC thermistor | NTC thermistor | NTC thermistor |
| Domeniu de masura | ||||
| Viteza | 0.1 .. 40m/s | 0.1 .. 40m/s | 0.1 .. 5m/s | 0.1 .. 5m/s |
| Temperatura | -25 .. +80°C | -25 .. +80°C | -25 .. +80°C | 0 .. 80°C |
| Rezolutie | ||||
| Viteza | 0.01 m/s 0.1 km/h 1 ft/min 0.1 mph 0.1 knot |
0.01 m/s 0.1 km/h 1 ft/min 0.1 mph 0.1 knot |
0.01 m/s 0.1 km/h 1 ft/min 0.1 mph 0.1 knot |
0.01 m/s 0.1 km/h 1 ft/min 0.1 mph 0.1 knot |
| Temperatura | 0.1°C | 0.1°C | 0.1°C | 0.1°C |
| Acuratete | ||||
| Viteza | ±0.2 m/s (0 .. 0.99 m/s) | ±0.2m/s (0 .. 0.99 m/s) | ||
| ±0.4 m/s (1.00 .. 9.99 m/s) | ±0.3m/s (1.00 .. 5.00 m/s) | |||
| ±0.8 m/s (10.00 .. 40.0 m/s) | - | - | ||
| Temperatura | ±0.8°C (-10 .. +80°C) | ±0.8°C (-10 .. +80°C) | ||
| Viteza minima | 0,1 m/s | 0,1 m/s | 0,1 m/s | 0,1 m/s |
| Compensare temperatura aerului | 0 .. 80°C | 0 .. 80°C | 0 .. 80°C | 0 .. 80°C |
| Conditii de operare | Aer curat , RH<80% | Aer curat, RH<80% | ||
| Anatomie | aprox. 20 ore la 20 m/s cu baterii alkaline | aprox. 20 ore la 20 m/s cu baterii alkaline | ||
| Unitati de masura | ||||
| Viteza | m/s – km/h – ft/min – mph – knot | m/s – km/h – ft/min – mph – knot | ||
| Debit | l/s - m3/s - m3/min - m3/h - ft3/s - ft3/min | l/s - m3/s - m3/min - m3/h - ft3/s - ft3/min | ||
| Masurare debitul pe sectiunea conductelor | 0.0001 .. 1.9999 m2 | 0.0001 .. 1.9999 m2 | ||
| Lungime cablu | ~2m | ~2m | ~2m | ~2m |
Sonde cu senzor de temperatura Pt100
| Model | Tip | Domeniu de Tmp. | Acuratete |
|---|---|---|---|
| TP472I | Imersie | -196°C .. +500°C | ±0.25°C (-196°C .. +300°C) |
| ±0.5°C (+300°C .. +500°C) | |||
| TP472I.0 1/3 DIN Film subtire | Imersie | -50°C .. +300°C | ±0.25°C (-50°C .. +300°C) |
| TP473P.I | Penetrare | -50°C .. +400°C | ±0.25°C (-50°C .. +300°C) |
| ±0.5°C (+300°C .. +400°C) | |||
| TP473P.0 1/3 DIN Film subtire | Penetrare | -50°C .. +300°C | ±0.25°C (-50°C .. +300°C) |
| TP474C.0 1/3 DIN Film subtire | Contact | -50°C .. +300°C | ±0.3°C (-50°C .. +300°C) |
| TP475A.0 1/3 DIN Film subtire | Air | -50°C .. +250°C | ±0.3°C (-50°C .. +250°C) |
| TP472I.5 | Penetrare | -50°C .. +400°C | ±0.3°C (-50°C .. +300°C) |
| ±0.6°C (+300°C .. +400°C) | |||
| TP472I.10 | Penetrare | -50°C .. +400°C | ±0.30°C (-50°C .. +300°C) |
| ±0.6°C (+300°C .. +400°C) | |||
| TP49A.I Clasa A Film subtire | Imersie | -70°C .. +250°C | ±0.3°C (-70°C .. -50°C) |
| ±0.25°C (-50°C .. +250°C) | |||
| TP49AC.I Clasa A Film subtire | Contact | -70°C .. +250°C | ±0.3°C (-70°C .. -50°C) |
| ±0.25°C (-50°C .. +250°C) | |||
| TP49AP.I Clasa A Film subtire | Penetrare | -70°C .. +250°C | ±0.3°C (-70°C .. -50°C) |
| ±0.25°C (-50°C .. +250°C) | |||
| TP875.I | Glob Ø150mm | -30°C .. +120°C | ±0.25°C |
| TP876.I | Glob Ø50mm | -30°C .. +120°C | ±0.25°C |
| TP87.0 1/3 DIN Film subtire | Imersie | -50°C .. +200°C | ±0.25°C |
| TP878.0 1/3 DIN Film subtire | Fotovoltaic | -40°C .. +85°C | ±0.25°C |
| TP878.1.0 1/3 DIN Film subtire | Fotovoltaic | -40°C .. +85°C | ±0.25°C |
| TP879.0 1/3 DIN Film subtire | Compost | -20°C .. +120°C | ±0.25°C |
Sonda Pt100 cu 4 fire si Pt1000 cu 2 fire
| Model | Sonda | Tip | Domeniu d emasurare | Accuracy |
|---|---|---|---|---|
| TP47.100.0 | Pt100 | 4 wires | -50…+250°C | 1/3 DIN |
| TP47.1000.0 | Pt1000 | 2 wires | -50…+250°C | 1/3 DIN |
