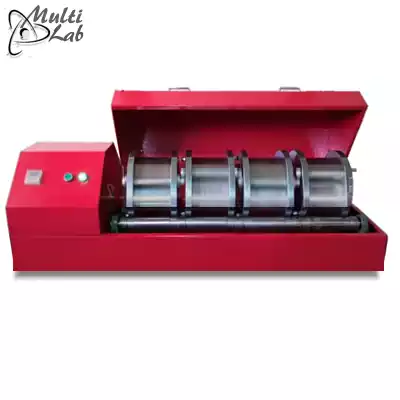

Masina Micro Deval 4 cilindri

Masina de testare Micro Deval cu 4 Cilindrii

Standarde / conformitate

Masina este conceputa pentru determinarea coeficientul de friabilitate / rezistenta fragmentele agregatelor si pietris la abraziune conform standarde: EN 1097-1; UNE 83.115; AFNOR P18.572; NF P18-576

Caracteristici generale

Este echipata cu 4 cilindri din otel cu diametru de Ø 200 mm si lungime de 154 mm, montat pe cadrul rigid.
Cinlindrul se roteste cu viteza de 100 rpm
Carcasa pentru protectie in conformitate cu cerintele CE de siguranta in exploatare.
Prevazuta cu contor digital automat

Date tehnice

• Nr. cilindru : 4
• Lungime cilindru : 154mm
• Diametru cilindri: Ø200 mm
• Alimentare: 220 – 240 V / 50 – 60 Hz
• Viteza de rotatie: 100 rpm

Livrata cu: 4 cililindrii din otel inox de Ø 200 mm x 154 mm
*bile se comanda separat

Accesorii optionale

- A0655/1 bile din otel inox Ø10 mm set/25 kg
- A0655/1/2 bile din otel inox Ø18 mm diameter. set/50 buc. aplicatie standard NF P18-576
- A0655/1/3 bile din otel inox Ø30 mm diameter. 10 unit pack. aplicatie standard NF P18-576
- A0655/2 Cilindru rezerva din otel inox
- A0655/3 Cilindru rezerva din otel inox Ø200 mm x 400 mm aplicatie standard NF P18-576.
- A0655/4 Suport si carcasa cu izolatie fonica
- A0655/5 Suport si carcasa fara izolatie fonica

---

Produsul poate fi achizitionat si prin SEAP

Solicit oferta personalizata »

4 Drums Micro Deval Aggregates Testing Machine

Determination of Friability coefficient / Fragmentation resistance

Standards

EN 1097-1; UNE 83.115; AFNOR P18.572; NF P18-576

Main Features

The machine consists of a robust iron frame in which four test cylinders measuring Ø int. 200 ± 1 mm x 154 ±1 mm high rotate at constant speed on two metal rollers covered with anti-wear rubber.
Each cylinder has an hermetically sealed lid to guarantee airtightness.
The digital command and control panel is vibration free and includes electronic adjustment, selection and automatic end-of-cycle stop technology.
The machine is supplied complete with safety protection and emergency stop in compliance with EC machine directives, with a collection tray. Abrasion balls are not included and must be ordered separately (see accessories).

Technical Data

• Rotation speed: 100 ± 5 rpm.
• Power supply: 220/380 V. 50 Hz.
• Dimensions: 1120 x 1240 x 520 mm.
• Weight: 110 kg.Revolution Speed: 100 rpm

Optional Accessories

- A0655/1 Steel balls of 10 mm diameter. 25 kg pack
- A0655/1/2 Steel balls of 18 mm diameter. 50 unit pack. Fulfils standard NF P18-576
- A0655/1/3 Steel balls of 30 mm diameter. 10 unit pack. Fulfils standard NF P18-576
- A0655/2 Standard spare cylinder. Stainless steel
- A0655/3 Stainless steel cylinder of 200 mm diameter x 400 mm long Complies with NF P18-576.
- A0655/4 Soundproof protection system.
- A0655/5 Non-soundproof protection system.

---
