Aparat pentru testarea stabilitatii tartrice la vinuri


Analizor substantele tartrice
Metoda Testul Boulton / Conductivitate termica
Model A11307 si A11373

Analizoare automate pentru determinarea stabilității tartrice a vinului

Ultra-rapid Analyzer for Tartaric Stability in Wine and its Derivatives


produsul poate fi achizitionat si prin SEAP


Solicit oferta personalizata :: RFQ »

Caracteristici generale
Aparat complet automat pentru determinarea instantanee a stabilitatii tartrice in vinuri.
Principiul de functionare are la baza precipitarea substantelor tartrice si masurarea conductivitatii probei.
Aparatul este complet computerizat, are ecran LCD pentru afisare rezultate, imprimanta incorporata(optional) si interfata RS232 pentru conectare PC.
Metoda de lucru presupune urmarirea dinamicii precipitarii in mod isoterm (la temperatura aleasa intre -5°C ... +50°C.
Valoarea stabilitatii tartrice se determina din graficul conductivitatii functie de temperatura, cu si fara cristale tartrice.
Rezultatul se afiseaza pe ecran si se printeaza un raport al analizei la imprimanta incorporata.

Avantaje
• simplu de operat,
• acuratete si repetabilitate optima

Caracteristici tehnice
Display: 160x100 mm
Testatura: Touch screen
Sistem de operare: Android 2.2
Microprocesor: CPU
Memorie RAM: 256 MB
Memorie Flash inter 2GB
Interfata: WiFi 802.11 b/g/n
Conectare Eternet: serial RS232
Interfata USB pentru flash memory
Alimentare: 230 V - 50 Hz
Putere: 250 W
Conductometru: cu compensare automata platinum-platinum integrat
Precizie: 0.1 microS
Acuratete: 1 microS
Sonda de temperatura: Pt100, integrata
Domeniu de temperatura: - 5°C la 50 °C
Precizir: 0.01 °C
Acuratete: 0.1 °C
Carcasa: aluminiu acoperit cu strat epoxy
Camera probei: aluminiu anodizat
Volumul probei: 25 cc
Agitator: cu izolatia fonica
Dimensione: 350 x 280 x 200 mm
Greutate: 4 Kg

Ghid comanada

Model Descriere produs Cod produs

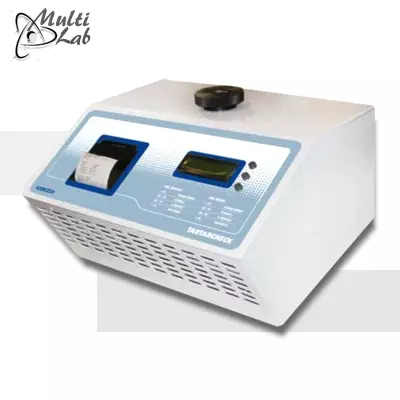

TARTARCHECK Analizor complet automat pentru determinarea instantanee a stabilitatii tartrice in vinuri Ultra-rapid electronic instrument for tartaric stability detection in wine and its derivatives; Complete with printer and THK solution ML-A11307

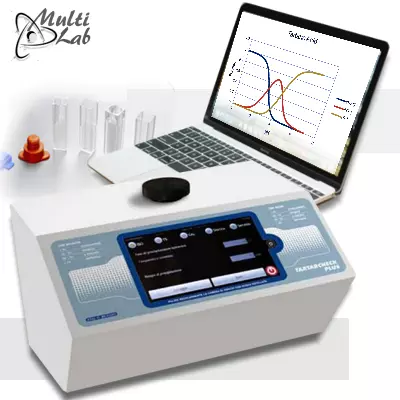

TARTARCHECK PLUS Analizor complet automat pentru determinarea instantanee a stabilitatii tartrice in vinuri Ultra-rapid electronic instrument for tartaric stability detection in wine and its derivatives; Touch Screen data reading, with results automatic storage Wi-Fi connection ML-A11373



Main features
Ultra-rapid electronic instrument for tartaric stability detection in wine and its derivatives
Peltier cells cooling system with double interchange.
Compact, silent, highest measurement speed.
Small dimensions and usage simplicity make the instrument suitable to work in any environment.
The instrument gives all the needed data, in the shortest possible time, to detect time and methods of continuous wine stabilization.
Through a simply and intuitive software, it is possible to:
- perform kinetics and isotherm precipitations at any temperature between -5 and 45°C;
- detect the saturation temperature through an intersection among the conductibility thermic profiles, both with and without THK crystals.

Advantages
The instrument is equipped with a BUILT-IN “TOUCH SCREEN” PC directly managing all the analysis operations, charts, calibrations and stores.
Cell thermostating; the cell’s cooling occurs in few seconds thanks to double-interchange Peltier Cells with AIR cooling system.
The instrument needs NO FURTHER EXTERNAL device needed.
A wide (160x100mm) graphic display allows a clear and prompt reading of data and charts on the current analysis.
The instrument interfaces with PC through USB or LAN and is also equipped with Wi-Fi system.

Saturation Tempreture (TS) Measurement The TS test detect at which temperature the THK solubility is equal to the dissolved THK concentration. TARTARCHECK allows to perform this test generating an operation having the following steps:
- wine curve: the sample is brought to T°-min and them to T°-max. During this procedure, the conductivity is measured every 5 seconds.
- THK addition: the sample is cooled again to reach T°-min; now the user adds THK, then a phase of thermic stabilization occurs.
The T° where the two curves detach is the TS.
- charts: the stored data are interpolated and the TS is mathematically given.
All the performed analysis are automatically stored in an Archive file inside the instrument. The strong operating system (256 MB) allows to store some thousands of samples. The saved data are automatically filed alphabetically and chronologically. The configuration is Italian / English.

Technical Data
Display: 160x100 mm
Keyboard: Touch screen
Operating system: Android 2.2
Board: CPU
RAM: 256 MB
Flash inter 2GB
Interface: WiFi 802.11 b/g/n
Ethernet: serial RS232
USB for flash memory
Power: 230 V - 50 Hz
Voltage: 250 W
Conductivity meter: platinum-platinum, chamber built-in
Sensibility: 0.1 microS
Accuracy: 1 microS
Temperature probe: Pt100, integrated in the chamber
Temperature range: - 5°C to 50 °C
Sensibility: 0.01 °C
Accuracy: 0.1 °C
External frame: painted aluminium with epoxy acid-resistant powder
Analysis chamber: anodized aluminium
Sample volume: 25 cc
Shaking: with anti-noise system
Dimensions: 350 x 280 x 200 mm
Weight: 4 Kg

Order information

Model Description Product Code
TARTARCHECK Ultra-rapid electronic instrument for tartaric stability detection in wine and its derivatives; Complete with printer and THK solution ML-A11307
TARTARCHECK PLUS Ultra-rapid electronic instrument for tartaric stability detection in wine and its derivatives; Touch Screen data reading, with results automatic storage Wi-Fi connection ML-A11373

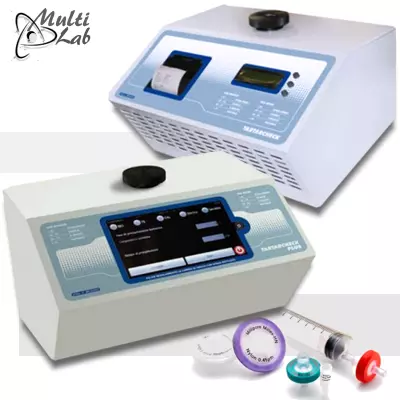

Consumabile si Accesorii optionale

Description Product Code
Software interface for windows X200743
Level index - thermal exchanger - glass with screw cap X200753
Hg thermometer -10 + 50, div. 1/10 YT0102200
Emptying 50ml syringe for analysis chamber X200141
THK dosing syringe X200143
Syringe filter 0,45 microS (pack of 50pcs) 9049102
Syringe filter 0,80 microS (pack of 50pcs) 9049103
Potassium hydrogenate (THK), 250 gr. A15281-250
Condictivity solution 1413 microS a 25°C, 500ml CL12.1110.0500
Thermal paper 57 X 35, pack of 10 rolls X200722
